3 Importing and Visualizing One- and Two-Mode Social Network Data in igraph
In this lab we’ll explore a variety of methods for importing social network data into R, manipulating one- and two-mode network data, and visualizing social networks. We’ll be using a variety of social networks, some of which you’ll recognize from other classes. We’ll also illustrate a variety of ways to import network data, something that should be easy to do but often turns out to be challenging because a number of resources jump over this important step.
Note: This lab has gone through many iterations and reflects the influence from a variety of individuals, including Phil Murphy, and Brendan Knapp.
3.1 Setup
Find and open your RStudio Project associated with this class. Begin by opening a new script. It’s generally a good idea to place a header at the top of your scripts that tell you what the script does, its name, etc.
#######################################################################
# What: Importing and Visualizing One- and Two-Mode Social Network Data
# File: lab1_igraph.R
# Created: 02.28.14
# Revised: 01.06.22
#######################################################################
If you have not set up your RStudio Project to clear the workspace on exit, your environment contain the objects and functions from your prior session. To clear these before beginning use the following command.
Proceed to place the data required for this lab (davis.csv
, davis.net
, davisedge.csv
, Koschade Bali (Edge).csv
, Koschade Bali (Matrix).csv
, and Koschade Bali.net
) also inside your R Project folder. We have placed it in a sub-folder titled data
for organizational purposes; however, this is not necessary.
3.2 Load Libraries
We need to load the libraries we plan to use. Here we will use igraph. Because igraph and statnet conflict with one another sometimes, we do not want to have them loaded at the same time, so you may want to detach it. Alternatively, you may choose to namespace functions using the ::
operator as needed (e.g., igraph::betweenness()
vs. sna::betweenness()
). Of course, this applies only if you had the statnet
package loaded already. The intergraph package allows users to transform network data back and forth between igraph and statnet.
# If you haven't done so, install the required packages:
# install.packages("igraph")
# install.packages("intergraph")
# Now load them:
library(igraph)
library(intergraph)
Note: igraph imports the %>%
(piping) operator on load (library(igraph)
). This lab leverages the operator because we find it very useful in chaining functions, although in doing so we will sometimes illustrate how to carry out the same operations using base R.
3.3 One-mode Social Network Data in igraph: Koschade Network
Here, we will use data collected by Stuart Koschade of the 17 individuals who participated in the first Bali bombing. Koschade (2006) recorded both the ties between the individuals, as well as the strength of the tie between them.
3.3.1 Importing One-Mode Social Network Data
3.3.1.1 Option 1: Importing One-Mode Network Data in Matrix Format
One way is to read network in from a matrix saved as a csv file.
# First, read the csv file using the required arguments
koschade_dat <- read.csv(file = "data/Koschade Bali (Matrix).csv",
header = TRUE,
row.names = 1,
check.names = FALSE)
# Now, coerce the data.frame to a matrix
koschade_mat <- as.matrix(koschade_dat)
The two-step operation above could be combined with and without piping. First, without:
koschade_mat <- as.matrix(read.csv(file = "data/Koschade Bali (Matrix).csv",
header = TRUE,
row.names = 1,
check.names = FALSE))
And now with:
koschade_mat <- read.csv(file = "data/Koschade Bali (Matrix).csv",
header = TRUE,
row.names = 1,
check.names = FALSE) %>%
as.matrix()
Turn the matrix
into an igraph
object using the graph_from_adjacency_matrix()
function from the igraph library:
koschade1_ig <- graph_from_adjacency_matrix(adjmatrix = koschade_mat,
mode = "undirected",
weighted = TRUE)
Now that the matrix has been imported, let’s examine the object. First, take a look at it’s class:
[1] "igraph"
What is it? If you ran the code above the printout on your console should read igraph
. Many R objects have a class, which describes a type of object, the properties it possesses, how it behaves, and how it relates to other objects and functions (Wickham 2019). An igraph
class denotes that this object is an igraph graph and that it will work with the functions from this library.
One key characteristic of igraph graphs is that they are printed to the screen in a special format:
IGRAPH 67d9671 UNW- 17 63 --
+ attr: name (v/c), weight (e/n)
+ edges from 67d9671 (vertex names):
[1] Muklas --Amrozi Muklas --Imron Muklas --Samudra Muklas --Dulmatin
[5] Muklas --Idris Muklas --Azahari Muklas --Ghoni Muklas --Patek
[9] Muklas --Sarijo Amrozi --Samudra Amrozi --Idris Amrozi --Mubarok
[13] Imron --Samudra Imron --Dulmatin Imron --Idris Imron --Azahari
[17] Imron --Ghoni Imron --Patek Imron --Feri Imron --Sarijo
[21] Samudra--Dulmatin Samudra--Idris Samudra--Mubarok Samudra--Azahari
[25] Samudra--Ghoni Samudra--Arnasan Samudra--Rauf Samudra--Octavia
[29] Samudra--Hidayat Samudra--Junaedi Samudra--Patek Samudra--Sarijo
+ ... omitted several edges
This printout provides important information about the object. The first line starts with IGRAPH
, which denotes that this is an igraph graph. The following seven character code is the unique id for the graph. The following four letters distinguish whether:
- The graph is directed (
D
) or undirected (U
) - The graph is named (e.g., vertex names are set) (
N
) - The graph is weighted (
W
) - The graph is bipartite (
B
)
The second line (prefixed with +attr:
) includes the attributes of the graph (g
), the vertices (v
), and edges (e
). For instance, in this example, the name
attribute is a vertex attribute, while weight
is an edge attribute. The remainder of the printout (prefixed with + edges
) includes a sample of the relationships in the graph.
One advantage of storing data as an igraph
object is that the library has functions to transform relational records into a variety of formats. For example, from igraph
to an edge list. To do such, pass the koschade1_ig
object to the get.data.frame()
function.
from to weight
1 Muklas Amrozi 2
2 Muklas Imron 2
3 Muklas Samudra 1
4 Muklas Dulmatin 1
5 Muklas Idris 5
Similarly, edge and node attributes can be fetched back from the igraph
object. For example, extract a vector of edge weights, which we can use later vary edge width in our visualizations.
3.3.1.2 Option 2: Importing One-Mode Network Data as an Edge List
Here is how we can import an edge list, and then check the first few rows with the head()
command.
Source Target Weight
1 Muklas Amrozi 2
2 Muklas Imron 2
3 Muklas Samudra 1
4 Muklas Dulmatin 1
5 Muklas Idris 5
6 Muklas Azahari 1
Convert the edge list to an igraph
object and check for basic information.
koschade2_ig <- graph_from_data_frame(d = koschade2_el,
directed = FALSE)
# Look at the printout
koschade2_ig
IGRAPH 6807482 UN-- 17 63 --
+ attr: name (v/c), Weight (e/n)
+ edges from 6807482 (vertex names):
[1] Muklas --Amrozi Muklas --Imron Muklas --Samudra Muklas --Dulmatin
[5] Muklas --Idris Muklas --Azahari Muklas --Ghoni Muklas --Patek
[9] Muklas --Sarijo Amrozi --Samudra Amrozi --Idris Amrozi --Mubarok
[13] Imron --Samudra Imron --Dulmatin Imron --Idris Imron --Azahari
[17] Imron --Ghoni Imron --Patek Imron --Feri Imron --Sarijo
[21] Samudra--Dulmatin Samudra--Idris Samudra--Mubarok Samudra--Azahari
[25] Samudra--Ghoni Samudra--Arnasan Samudra--Rauf Samudra--Octavia
[29] Samudra--Hidayat Samudra--Junaedi Samudra--Patek Samudra--Sarijo
+ ... omitted several edges
Here’s how to do all that using piping:
koschade2_ig <- read.csv(file = "data/Koschade Bali (Edge).csv",
header = TRUE) %>%
graph_from_data_frame(directed = FALSE)
Look at the printout
IGRAPH 6811d82 UN-- 17 63 --
+ attr: name (v/c), Weight (e/n)
+ edges from 6811d82 (vertex names):
[1] Muklas --Amrozi Muklas --Imron Muklas --Samudra Muklas --Dulmatin
[5] Muklas --Idris Muklas --Azahari Muklas --Ghoni Muklas --Patek
[9] Muklas --Sarijo Amrozi --Samudra Amrozi --Idris Amrozi --Mubarok
[13] Imron --Samudra Imron --Dulmatin Imron --Idris Imron --Azahari
[17] Imron --Ghoni Imron --Patek Imron --Feri Imron --Sarijo
[21] Samudra--Dulmatin Samudra--Idris Samudra--Mubarok Samudra--Azahari
[25] Samudra--Ghoni Samudra--Arnasan Samudra--Rauf Samudra--Octavia
[29] Samudra--Hidayat Samudra--Junaedi Samudra--Patek Samudra--Sarijo
+ ... omitted several edges
3.3.1.3 Option 3: Importing One-Mode Network Data in Pajek Format
Another way to bring the data into igraph is to import the data from the Pajek file (*.net). The read_graph()
function is able to read graphs from multiple foreign formats.
koschade3_ig <- read.graph(file = "data/Koschade Bali.net",
format = "pajek")
# Look at the printout
koschade3_ig
IGRAPH 692d7c4 UNW- 17 63 --
+ attr: id (v/c), name (v/c), x (v/n), y (v/n), z (v/n), weight (e/n)
+ edges from 692d7c4 (vertex names):
[1] Muklas --Amrozi Muklas --Imron Muklas --Samudra Muklas --Dulmatin
[5] Muklas --Idris Muklas --Azahari Muklas --Ghoni Muklas --Patek
[9] Muklas --Sarijo Amrozi --Samudra Amrozi --Idris Amrozi --Mubarok
[13] Imron --Samudra Imron --Dulmatin Imron --Idris Imron --Azahari
[17] Imron --Ghoni Imron --Patek Imron --Feri Imron --Sarijo
[21] Samudra--Dulmatin Samudra--Idris Samudra--Mubarok Samudra--Azahari
[25] Samudra--Ghoni Samudra--Arnasan Samudra--Rauf Samudra--Octavia
[29] Samudra--Hidayat Samudra--Junaedi Samudra--Patek Samudra--Sarijo
+ ... omitted several edges
Transform the graph object to a data.frame
and view it (View()
).
from to weight
1 Muklas Amrozi 2
2 Muklas Imron 2
3 Muklas Samudra 1
4 Muklas Dulmatin 1
5 Muklas Idris 5
6 Muklas Azahari 1
3.3.1.4 Option 4: Importing One-Mode Network Data into statnet Format using intergraph
If you first worked with the data in statnet, you can use intergraph to convert a statnet network object to an igraph object. The intergraph library let’s you jump pretty smoothly between the data classes required by each library.
To be clear: this command only works if you already have a statnet network object
Of course, you may begin working with data in igraph and have to convert it to statnet. Here we will take an igraph
object and convert it to a network
class object required by the statnet suite. Then, we will return that object from network
to igraph
class.
# Transform an igraph object to network class
koschade_network <- asNetwork(koschade1_ig)
# Print it
koschade_network
Network attributes:
vertices = 17
directed = FALSE
hyper = FALSE
loops = FALSE
multiple = FALSE
bipartite = FALSE
total edges= 63
missing edges= 0
non-missing edges= 63
Vertex attribute names:
vertex.names
Edge attribute names:
weight
Note the different printout. Also, you can verify the class change using the class()
function.
[1] "network"
Now, return the network
object back into igraph
and view the data as an edge list.
from to na weight
1 1 2 FALSE 2
2 1 3 FALSE 2
3 1 4 FALSE 1
4 1 5 FALSE 1
5 1 6 FALSE 5
6 1 8 FALSE 1
What changed? Note that some variables and entries may have changed in the transition.
3.3.2 Plotting (Visualizing) the Koschade Network

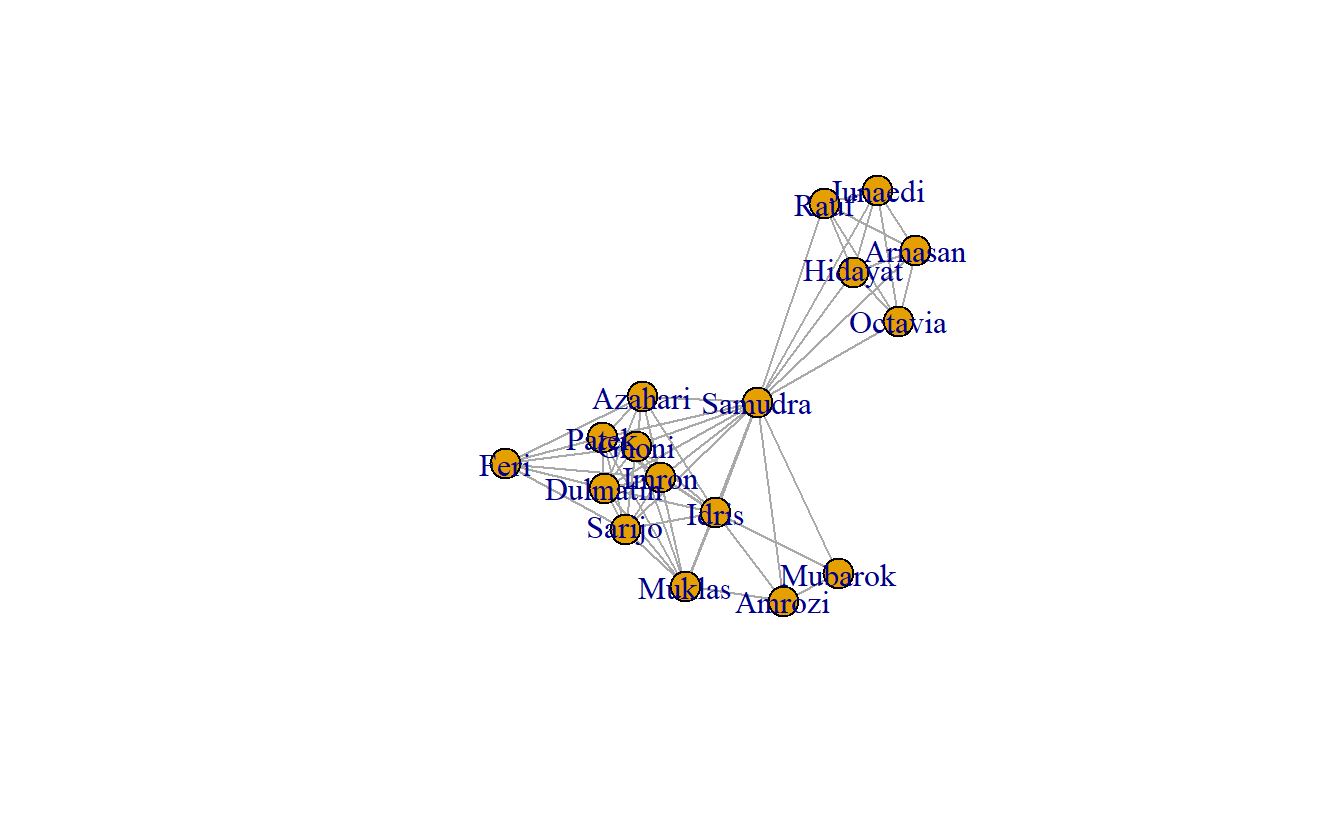

Here’s a simple plot using igraph.
plot(koschade1_ig)
# Note that you can also plot the other two graph:
# plot(koschade2_ig)
# plot(koschade3_ig)
Let’s try making some more sophisticated plots. Before we do that, however, let’s save the coordinates so that the remaining plots will have the same layout. Here, we will use the Fruchterman Reingold layout algorithm (layout_with_kk()
).
Now, visualize the network with some additional parameters, such as changing the node color (i.e., vertex.color
), the label size (i.e., vertex.label.cex
), and the node label color (i.e., vertex.label.color
). From here on out, we’ll just use the koschade1_ig
network.

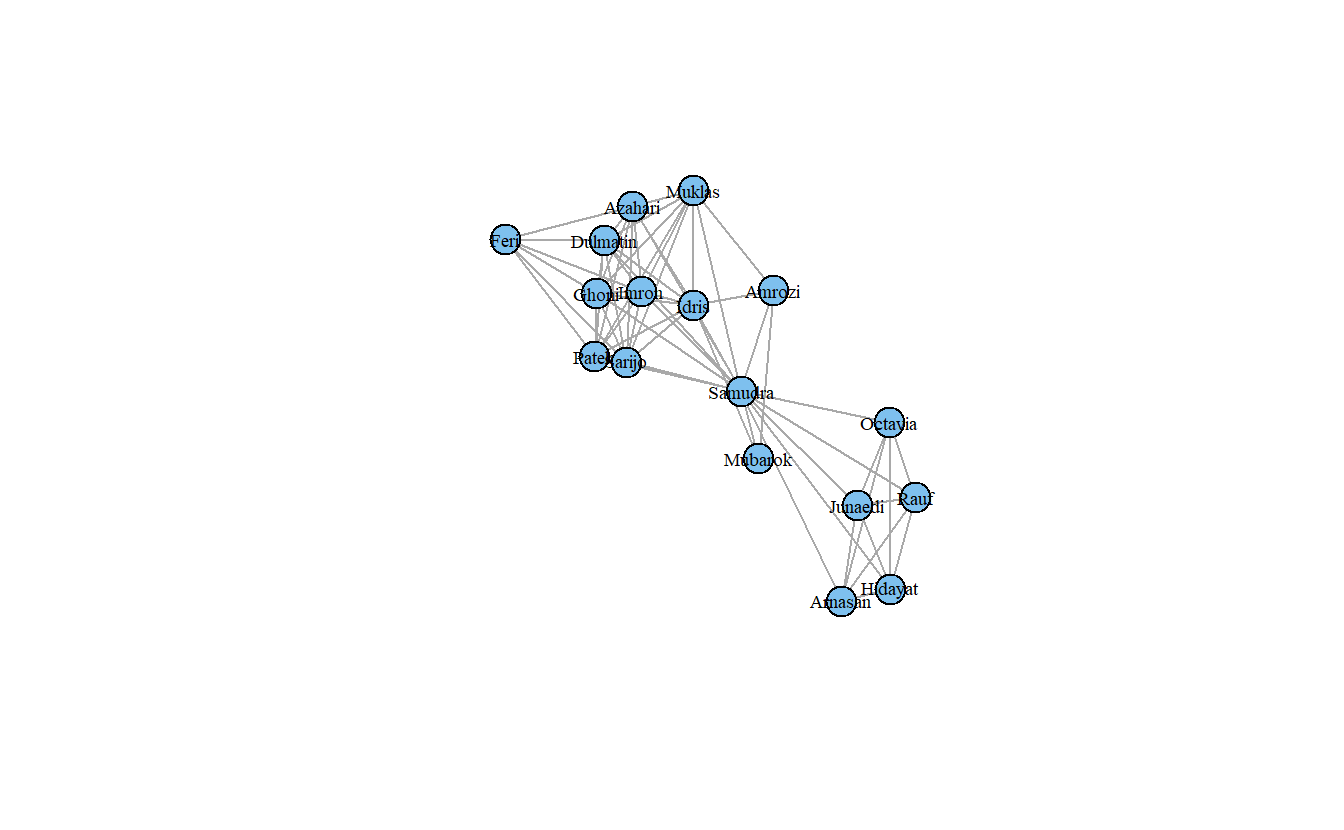

plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black")
Now, let’s size the edges by tie strength and plot again.
plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black",
# Recall the edge weight vector previously created
edge.width = edge_weight_1)
Note that the layout above is the same as the previous layout. This is helpful when presenting successive graphs in your papers and theses. It makes it easier for readers to compare the network graphs.
We can also change the edges to curved edges.
plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black",
edge.width = edge_weight_1,
edge.curved = TRUE)
3.3.3 Saving Network Plots (e.g., pdf, jpeg, png, tiff)
Save final plot in various formats.
Begin by saving the output in PDF format. To do such, use the pdf()
function, which starts the graphics driver for producing PDFs.
# Start the graphic driver, name output file, and set size
pdf(file = "koschade1.pdf",
width = 4, height = 4)
# Plot the output into the file
plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black",
edge.width = edge_weight_1)
# Turn off the graphics driver
dev.off()
To store the image as a JPEG, use the jpeg()
function. The bg = "transparent
option saves the graphs with a transparent background (rather than white), which can be helpful when placing in slides or on non-white backgrounds.
jpeg(file = "koschade1.jpg",
width = 4, height = 4,
units = 'in',
res = 600,
bg = "transparent")
plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black",
edge.width = edge_weight_1)
dev.off()
To store the image as a PNG, use the png()
function.
png(file = "koschade1.png",
width = 4, height = 4,
units = 'in',
res = 300,
bg = "transparent")
plot(koschade1_ig,
layout = coords,
vertex.color = "Skyblue2",
vertex.label.cex = .6,
vertex.label.color = "black",
edge.width = edge_weight_1)
dev.off()
To store the image as a TIFF, use the tiff()
function.
3.3.4 Saving Network Data
Finally, it doesn’t hurt to save the data that you’ve imported and created. Perhaps not all (e.g., coordinates) but it is helpful to save those that you may want to use in another setting.
3.4 Two-mode Social Network Data in igraph: Davis Southern Women
We will now switch to another data set to import, manipulate, and visualize two-mode network data in igraph. The data that we will use here is what is known as Davis’ Southern Club Women. Davis and her colleagues recorded the observed attendance of 18 Southern women at 14 different social events.
3.4.1 Importing Two-Mode Social Network Data into igraph
3.4.1.1 Option 1: Importing Two-Mode Social Network Data in Matrix Format
Once again, begin by reading the data from a CSV using read.csv()
. This then transformed into a matrix, which, in turn, is turned into a bipartite (two-mode) network using the graph_from_incidence_matrix()
igraph function. As before, we demonstrate how to do this with and without piping.
First, without piping:
davis1_dat <- read.csv(file = "data/davis.csv",
header = TRUE,
row.names = 1,
check.names = FALSE)
davis1_mat <- as.matrix(davis1_dat)
davis1_ig <- graph_from_incidence_matrix(davis1_mat,
directed = FALSE,
weighted = NULL)
Now, with piping:
davis1_ig <- read.csv(file = "data/davis.csv",
header = TRUE,
row.names = 1,
check.names = FALSE) %>%
as.matrix() %>%
graph_from_incidence_matrix(directed = FALSE,
weighted = NULL)
Now look at the graph printout:
IGRAPH 6a8ebc3 UN-B 32 89 --
+ attr: type (v/l), name (v/c)
+ edges from 6a8ebc3 (vertex names):
[1] EVELYN --E1 EVELYN --E2 EVELYN --E3 EVELYN --E4 EVELYN --E5
[6] EVELYN --E6 EVELYN --E8 EVELYN --E9 LAURA --E1 LAURA --E2
[11] LAURA --E3 LAURA --E5 LAURA --E6 LAURA --E7 LAURA --E8
[16] THERESA --E2 THERESA --E3 THERESA --E4 THERESA --E5 THERESA --E6
[21] THERESA --E7 THERESA --E8 THERESA --E9 BRENDA --E1 BRENDA --E3
[26] BRENDA --E4 BRENDA --E5 BRENDA --E6 BRENDA --E7 BRENDA --E8
[31] CHARLOTTE--E3 CHARLOTTE--E4 CHARLOTTE--E5 CHARLOTTE--E7 FRANCES --E3
[36] FRANCES --E5 FRANCES --E6 FRANCES --E8 ELEANOR --E5 ELEANOR --E6
+ ... omitted several edges
Note the B
letter in the four letter code string that describes the network qualities. Since the network was created using a function designed to create bipartite graphs, this feature is automatically added.
3.4.1.2 Option 2: Importing Two-Mode Social Network Data as an Edge List
Note: This section is adapted from code written by Phil Murphy and Brendan Knapp.
You may also begin creating your analysis of two-mode networks from an edge list. To do so, leverage the read.csv()
function to ingest data. Then, pass the edge list to igraph’s graph_from_data_frame()
function. Again, first without piping and then with piping.
Without:
davis2_el <- read.csv(file = "data/davisedge.csv",
header = TRUE)
davis2_ig <- graph_from_data_frame(davis2_el,
directed = FALSE)
With:
davis2_ig <- read.csv(file = "data/davisedge.csv",
header = TRUE) %>%
graph_from_data_frame(directed = FALSE)
Now look at the graph printout:
IGRAPH 6aa61fb UN-- 32 89 --
+ attr: name (v/c), Weight (e/n)
+ edges from 6aa61fb (vertex names):
[1] EVELYN --E1 EVELYN --E2 EVELYN --E3 EVELYN --E4 EVELYN --E5
[6] EVELYN --E6 EVELYN --E8 EVELYN --E9 LAURA --E1 LAURA --E2
[11] LAURA --E3 LAURA --E5 LAURA --E6 LAURA --E7 LAURA --E8
[16] THERESA --E2 THERESA --E3 THERESA --E4 THERESA --E5 THERESA --E6
[21] THERESA --E7 THERESA --E8 THERESA --E9 BRENDA --E1 BRENDA --E3
[26] BRENDA --E4 BRENDA --E5 BRENDA --E6 BRENDA --E7 BRENDA --E8
[31] CHARLOTTE--E3 CHARLOTTE--E4 CHARLOTTE--E5 CHARLOTTE--E7 FRANCES --E3
[36] FRANCES --E5 FRANCES --E6 FRANCES --E8 ELEANOR --E5 ELEANOR --E6
+ ... omitted several edges
This time, the B
letter in the four letter code is not present. If you need further evidence that davis2_ig
is not a bipartite graph, use the is_bipartite()
function, which checks whether the graph is two-mode or not by checking if the nodes in the graph have an attribute called type
.
[1] FALSE
At this point, the network is not a two-mode (bipartite) network. To tell igraph that it is, we can begin by using the bipartite.mapping()
function, which can tell us whether the network meets the criteria of a two-mode network. Those criteria are that there are (1) two sets of nodes in the network, and (2) there are only ties between node sets and not within them. If the network meets the criteria, igraph will identify which nodes belong in each mode.
$res
[1] TRUE
$type
[1] FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE FALSE
[13] FALSE FALSE FALSE FALSE FALSE FALSE TRUE TRUE TRUE TRUE TRUE TRUE
[25] TRUE TRUE TRUE TRUE TRUE TRUE TRUE TRUE
The function returns two responses. The first, denotes whether the network meets the criteria of a two-mode network ($res
). The second, ($type
) returns a logical vector denoting the mode to which each node belongs to. Thus, we can assign the type
vector to the node attributes in the davis2_ig
.
Once again, take a look at the printout:
IGRAPH 6aa61fb UN-B 32 89 --
+ attr: name (v/c), type (v/l), Weight (e/n)
+ edges from 6aa61fb (vertex names):
[1] EVELYN --E1 EVELYN --E2 EVELYN --E3 EVELYN --E4 EVELYN --E5
[6] EVELYN --E6 EVELYN --E8 EVELYN --E9 LAURA --E1 LAURA --E2
[11] LAURA --E3 LAURA --E5 LAURA --E6 LAURA --E7 LAURA --E8
[16] THERESA --E2 THERESA --E3 THERESA --E4 THERESA --E5 THERESA --E6
[21] THERESA --E7 THERESA --E8 THERESA --E9 BRENDA --E1 BRENDA --E3
[26] BRENDA --E4 BRENDA --E5 BRENDA --E6 BRENDA --E7 BRENDA --E8
[31] CHARLOTTE--E3 CHARLOTTE--E4 CHARLOTTE--E5 CHARLOTTE--E7 FRANCES --E3
[36] FRANCES --E5 FRANCES --E6 FRANCES --E8 ELEANOR --E5 ELEANOR --E6
+ ... omitted several edges
Notice the B
in the first line of the output. This tells us that igraph now recognizes the network as a bipartite/two-mode network. We can check it using a function again.
[1] TRUE
3.4.1.3 Option 3: Importing Two-Mode Social Network Data in Pajek Format
Read in the Pajek file using igraph’s read.graph()
function.
Once again, ensure that the network was read in correctly as two-mode (bipartite).
[1] TRUE
3.4.2 Plotting Two-Mode Social Network Data in igraph

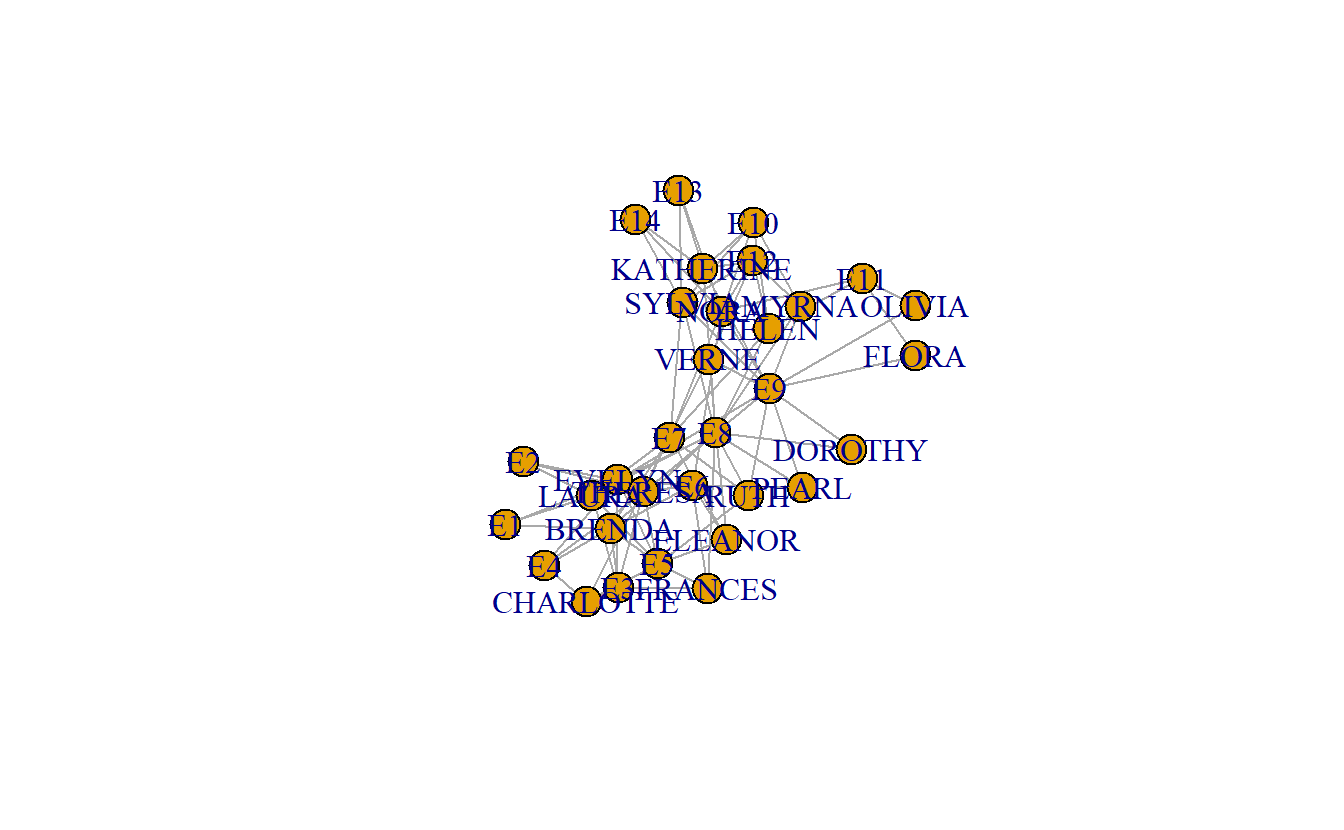

Like with one-mode data, two-mode data can be plotted using igraph. Once again, we can use the plot()
function to graph igraph
objects.
Once again, we can store the coordinates as a separate object and use it to compare networks. Here we will plot networks side-by-side using the par()
function. Additionally, we can make some aesthetic improvements through adding arguments (e.g., vertex.label.cex
, etc.).

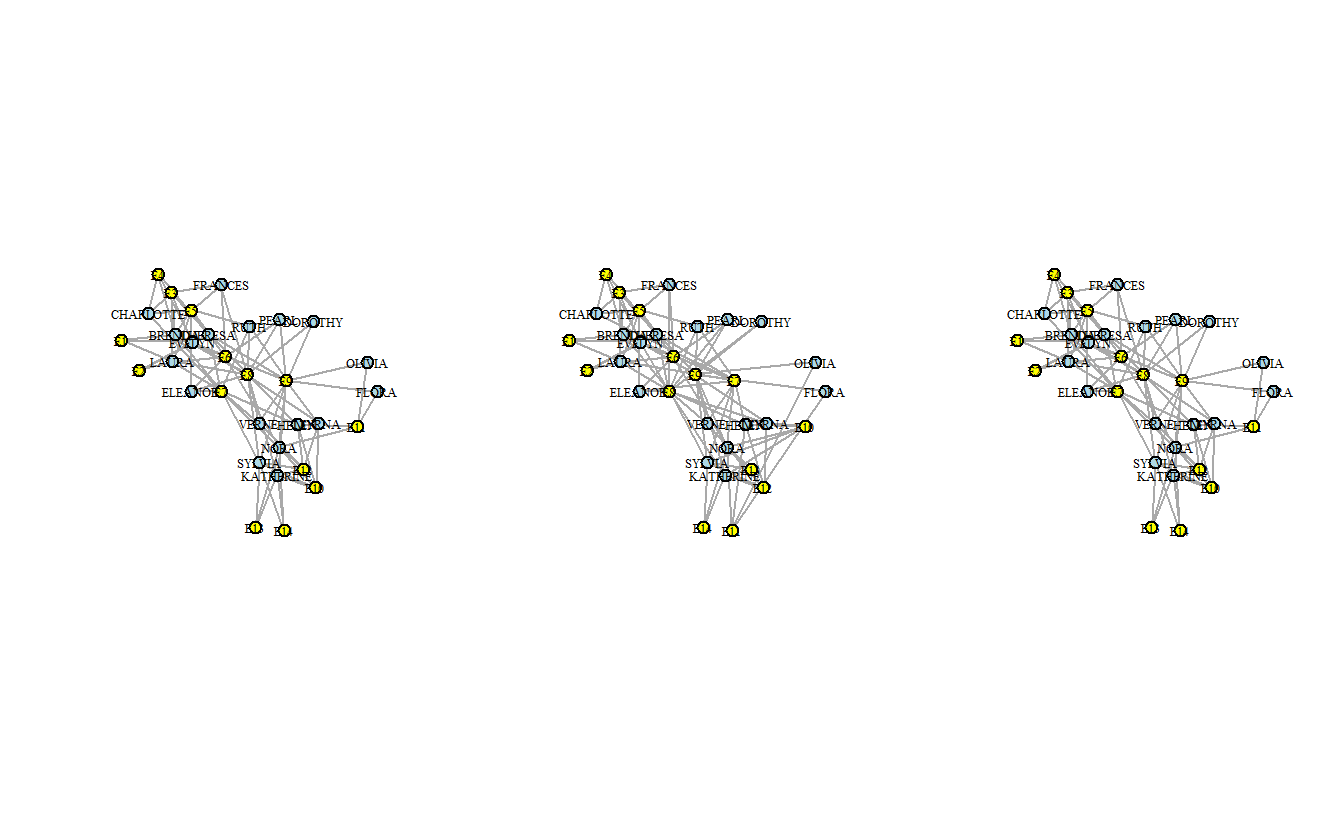

# Set graph parameters to 1 row and 3 columns
par(mfrow = c(1, 3))
# Store node coordinates
coordfr <- layout_with_fr(davis1_ig)
# Plot graphs
plot(davis1_ig,
layout = coordfr,
vertex.label.cex = 0.6,
vertex.label.color = "black")
plot(davis2_ig,
layout = coordfr,
vertex.label.cex = 0.6,
vertex.label.color = "black")
plot(davis3_ig,
layout = coordfr,
vertex.label.cex = 0.6,
vertex.label.color = "black")
Now, let’s make a few adjustments to the graph; for instance, we can change the node colors to “light blue” and “yellow” to reflect node types. First, we need to determine what nodes belong to which mode.
davis1_ig %>%
# Pull node list, which should include a 'type' node attribute
get.data.frame("vertices") %>%
# Cross tabulate the 'name' and 'type' variables
table()
name
type BRENDA CHARLOTTE DOROTHY E1 E10 E11 E12 E13 E14 E2 E3 E4 E5 E6 E7 E8 E9
FALSE 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
TRUE 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1
name
type ELEANOR EVELYN FLORA FRANCES HELEN KATHERINE LAURA MYRNA NORA OLIVIA
FALSE 1 1 1 1 1 1 1 1 1 1
TRUE 0 0 0 0 0 0 0 0 0 0
name
type PEARL RUTH SYLVIA THERESA VERNE
FALSE 1 1 1 1 1
TRUE 0 0 0 0 0
The output indicates that the women are assigned to the FALSE
category, while the events fall under TRUE
. Thus, we can assign colors using a conditional statement (e.g., ifelse()
).

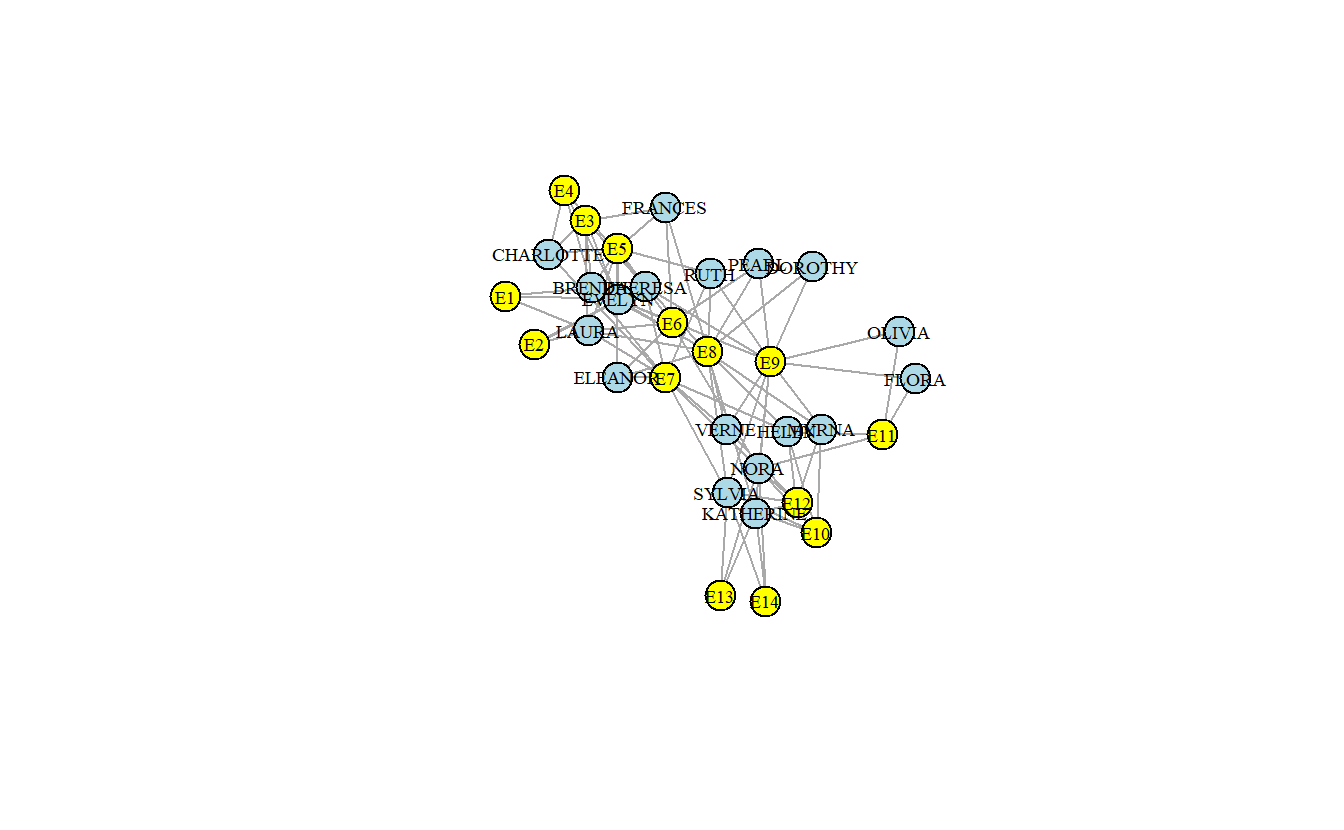

plot(davis1_ig,
layout = coordfr,
# Get the vertex attribute vector, if the attribute is TRUE assign 'yellow'
# as the vertex color. Otherwise, assign 'lightblue'.
vertex.color = ifelse(get.vertex.attribute(davis1_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black")
Now, re-plot the networks with the new colors and saved the coordinate while we’re at it.
# Set graph parameters to 1 row and 3 columns
par(mfrow = c(1, 3))
# Plot graphs
plot(davis1_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis1_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = 10)
plot(davis2_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis2_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = 10)
plot(davis3_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis3_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = 10)
We may want to rescale nodes to reflect those with more adjacent nodes. To do so, we can use the degree()
function to calculate a node’s degree centrality. If this measure is not familiar to you yet, don’t worry, we will expand on this topic later in the class.
EVELYN LAURA THERESA BRENDA CHARLOTTE FRANCES ELEANOR PEARL
8 7 8 7 4 4 4 3
RUTH VERNE MYRNA KATHERINE SYLVIA NORA HELEN DOROTHY
4 4 4 6 7 8 5 2
OLIVIA FLORA E1 E2 E3 E4 E5 E6
2 2 3 3 6 4 8 8
E7 E8 E9 E10 E11 E12 E13 E14
10 14 12 5 4 6 3 3
As you can see, the output of the degree()
function is a named vector with a score for the number of edges a given node has. Now, let’s calculate degree centrality and then plot the graphs again but adjust the node size to reflect degree which we’ve rescaled in order to make the nodes more visible.

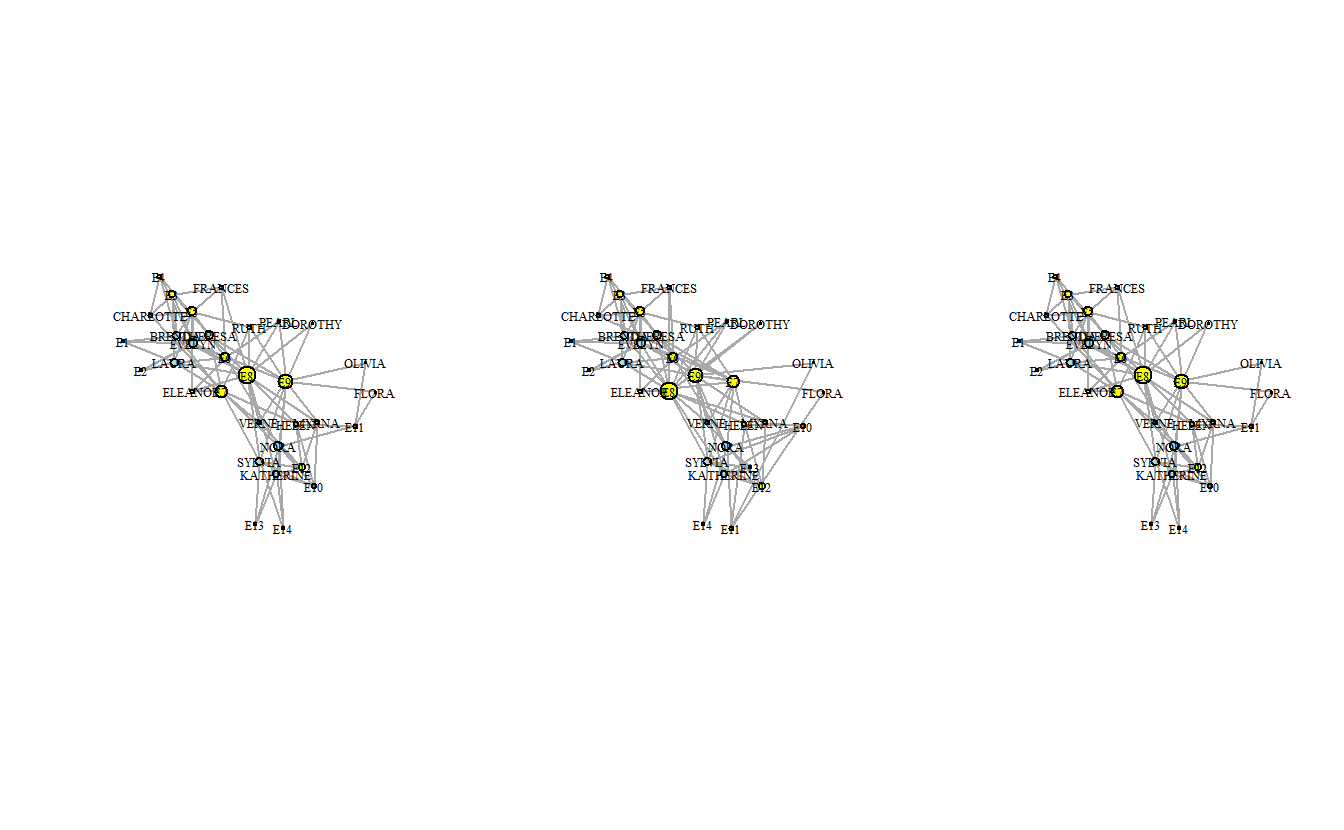

# Set graph parameters to 1 row and 3 columns
par(mfrow = c(1, 3))
# Plot graphs
plot(davis1_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis1_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis1_ig))
plot(davis2_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis2_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis2_ig))
plot(davis3_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis3_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis3_ig))
3.4.3 Projecting (Folding) Two-Mode Networks into One-Mode Networks in igraph
For this section, we will just work with the davis1_ig
network object.
3.4.3.1 Multiplying Matrices
To transform the network into two one-mode networks, we first convert the two-mode igraph
object to a matrix
. The key function here is get.incidence()
. Note the first command makes sure that the matrix has labels once it is transformed.
davis1_mat <- davis1_ig %>%
# Set vertex attribute 'id' using the 'name' attribute
set_vertex_attr(name = "id",
value = V(.)$name) %>% # The . represents davis1_ig
get.incidence()
View the matrix:
Next, multiply the matrices by their transpose. To do so, we use the %*%
operator to multiply networks and the t()
function to transpose one matrix during the multiplication.
First, let’s create a one-mode matrix of women-to-women based on shared events.
Repeat the process, this time switch the order of the transposed matrix to generate an events-to-events matrix.
Take a look at one or both of the matrices:

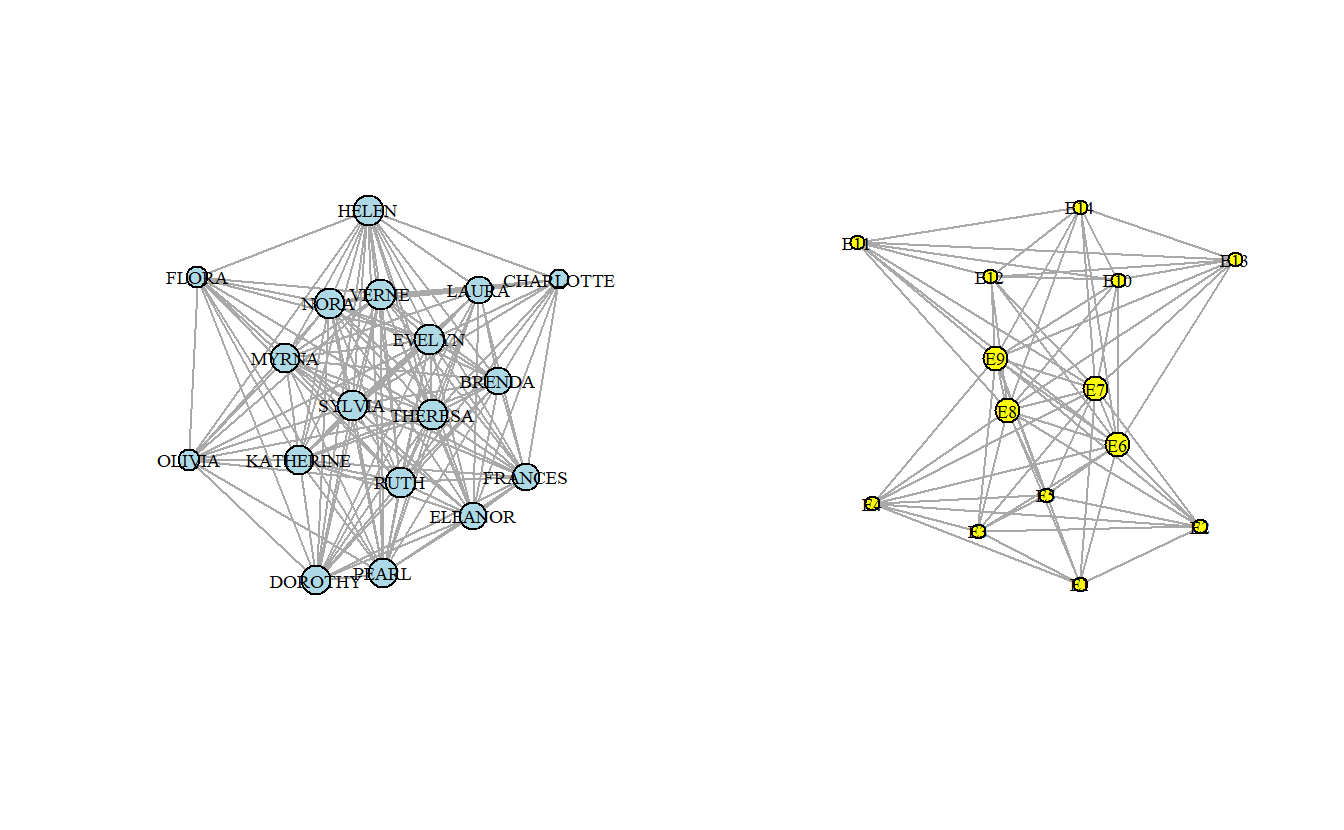

With the matrices projected, you can now convert both to igraph
objects using the graph.adjacency()
function.
The next step is to remove loops and multiple edges; that is acomplished using the simplify()
function.
davis_women_ig <- simplify(davis_women_ig,
remove.multiple = TRUE,
remove.loops = TRUE,
edge.attr.comb = sum)
davis_women_ig
IGRAPH 6dce618 UNW- 18 139 --
+ attr: name (v/c), weight (e/n)
+ edges from 6dce618 (vertex names):
[1] EVELYN --LAURA EVELYN --THERESA EVELYN --BRENDA EVELYN --CHARLOTTE
[5] EVELYN --FRANCES EVELYN --ELEANOR EVELYN --PEARL EVELYN --RUTH
[9] EVELYN --VERNE EVELYN --MYRNA EVELYN --KATHERINE EVELYN --SYLVIA
[13] EVELYN --NORA EVELYN --HELEN EVELYN --DOROTHY EVELYN --OLIVIA
[17] EVELYN --FLORA LAURA --THERESA LAURA --BRENDA LAURA --CHARLOTTE
[21] LAURA --FRANCES LAURA --ELEANOR LAURA --PEARL LAURA --RUTH
[25] LAURA --VERNE LAURA --MYRNA LAURA --KATHERINE LAURA --SYLVIA
[29] LAURA --NORA LAURA --HELEN LAURA --DOROTHY THERESA--BRENDA
+ ... omitted several edges
Keep in mind that many steps can be put into a pipeline to reduce the lines of code.
davis_events_ig <- graph.adjacency(davis_events_mat,
mode = "undirected",
weighted = TRUE) %>%
simplify(remove.multiple = TRUE, remove.loops = TRUE,
edge.attr.comb = sum)
davis_events_ig
IGRAPH 6dd737a UNW- 14 66 --
+ attr: name (v/c), weight (e/n)
+ edges from 6dd737a (vertex names):
[1] E1 --E2 E1 --E3 E1 --E4 E1 --E5 E1 --E6 E1 --E7 E1 --E8 E1 --E9
[9] E2 --E3 E2 --E4 E2 --E5 E2 --E6 E2 --E7 E2 --E8 E2 --E9 E3 --E4
[17] E3 --E5 E3 --E6 E3 --E7 E3 --E8 E3 --E9 E4 --E5 E4 --E6 E4 --E7
[25] E4 --E8 E4 --E9 E5 --E6 E5 --E7 E5 --E8 E5 --E9 E6 --E7 E6 --E8
[33] E6 --E9 E6 --E10 E6 --E11 E6 --E12 E6 --E13 E6 --E14 E7 --E8 E7 --E9
[41] E7 --E10 E7 --E11 E7 --E12 E7 --E13 E7 --E14 E8 --E9 E8 --E10 E8 --E11
[49] E8 --E12 E8 --E13 E8 --E14 E9 --E10 E9 --E11 E9 --E12 E9 --E13 E9 --E14
[57] E10--E11 E10--E12 E10--E13 E10--E14 E11--E12 E11--E13 E11--E14 E12--E13
+ ... omitted several edges
3.4.3.2 Projecting Two-Mode igraph Graphs
Beyond multiplying matrices, the process of transforming two-mode data to one-mode can be fully accomplished using functions from the igraph library.
Remember that two-mode graph objects in igraph have a type
vertex attribute, which can be called using the get.vertex.attribute()
and can be used (under the hood) to determine if a graph is two-mode using the is_biparite()
.
# Pull 'type' vertex attribute
get.vertex.attribute(davis1_ig, name = "type")
# Test if it is two-mode
is_bipartite(davis1_ig)
If a graph is in fact two mode, we can transform it to one-mode using the bipartite_projection()
function.
The events are assigned to the TRUE
mode. As such, we can specify which mode will be extracted from the two-mode network setting the which
argument to true
IGRAPH 6de89c0 UNW- 14 66 --
+ attr: name (v/c), weight (e/n)
+ edges from 6de89c0 (vertex names):
[1] E1 --E2 E1 --E3 E1 --E4 E1 --E5 E1 --E6 E1 --E8 E1 --E9 E1 --E7
[9] E2 --E3 E2 --E4 E2 --E5 E2 --E6 E2 --E8 E2 --E9 E2 --E7 E3 --E4
[17] E3 --E5 E3 --E6 E3 --E8 E3 --E9 E3 --E7 E4 --E5 E4 --E6 E4 --E8
[25] E4 --E9 E4 --E7 E5 --E6 E5 --E8 E5 --E9 E5 --E7 E6 --E8 E6 --E9
[33] E6 --E7 E6 --E10 E6 --E11 E6 --E12 E6 --E13 E6 --E14 E7 --E8 E7 --E9
[41] E7 --E12 E7 --E10 E7 --E13 E7 --E14 E7 --E11 E8 --E9 E8 --E12 E8 --E10
[49] E8 --E13 E8 --E14 E8 --E11 E9 --E12 E9 --E10 E9 --E13 E9 --E14 E9 --E11
[57] E10--E12 E10--E13 E10--E14 E10--E11 E11--E12 E11--E13 E11--E14 E12--E13
+ ... omitted several edges
Now extract the women one-mode network setting the which
argument to false
in the bipartite_projection()
function.
IGRAPH 6df300c UNW- 18 139 --
+ attr: name (v/c), weight (e/n)
+ edges from 6df300c (vertex names):
[1] EVELYN --LAURA EVELYN --BRENDA EVELYN --THERESA EVELYN --CHARLOTTE
[5] EVELYN --FRANCES EVELYN --ELEANOR EVELYN --RUTH EVELYN --PEARL
[9] EVELYN --NORA EVELYN --VERNE EVELYN --MYRNA EVELYN --KATHERINE
[13] EVELYN --SYLVIA EVELYN --HELEN EVELYN --DOROTHY EVELYN --OLIVIA
[17] EVELYN --FLORA LAURA --BRENDA LAURA --THERESA LAURA --CHARLOTTE
[21] LAURA --FRANCES LAURA --ELEANOR LAURA --RUTH LAURA --PEARL
[25] LAURA --NORA LAURA --VERNE LAURA --SYLVIA LAURA --HELEN
[29] LAURA --MYRNA LAURA --KATHERINE LAURA --DOROTHY THERESA--BRENDA
+ ... omitted several edges
3.4.4 Plotting Projected One-Mode Networks
Now that we have extracted the one-mode networks, plot the two new graphs using plot()
and the additional arguments used previously.
# Set graph parameters to 1 row and 2 columns
par(mfrow = c(1, 2))
# Store node coordinates
coords_women <- layout_with_fr(davis_women_ig)
coords_events <- layout_with_fr(davis_events_ig)
# Plot graphs
plot(davis_women_ig,
layout = coords_women,
vertex.color = "light blue",
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis_women_ig))
plot(davis_events_ig,
layout = coords_events,
vertex.color = "yellow",
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis_events_ig))
3.4.5 Saving Network Plots
Now, save plots of the two-mode network and the two one-mode networks produced.
png(file = "davis1.png",width = 4,height = 4,units = 'in', res = 300,
bg = "transparent")
plot(davis1_ig,
layout = coordfr,
vertex.color = ifelse(get.vertex.attribute(davis1_ig, name = "type"),
"yellow", "lightblue"),
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis1_ig))
dev.off()
png(file = "daviswomen.png",width = 4,height = 4,units = 'in',res = 300,
bg = "transparent")
plot(davis_women_ig,
layout = coords_women,
vertex.color = "light blue",
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis_women_ig))
dev.off()
png(file = "davisevents.png",width = 4,height = 4,units = 'in',res = 300,
bg = "transparent")
plot(davis_events_ig,
layout = coords_events,
vertex.color = "yellow",
vertex.label.cex = 0.6,
vertex.label.color = "black",
vertex.size = degree(davis_events_ig))
dev.off()
